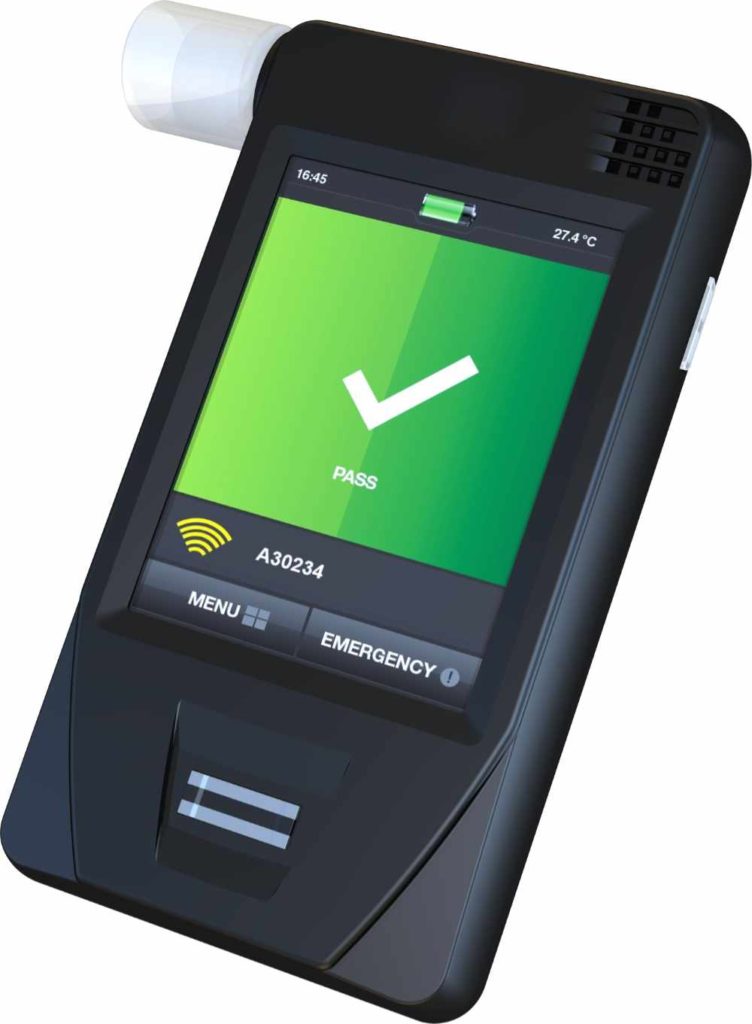

PreLock 95 Alcohol Ignition Interlock
Complies with the CENELEC EN 50436-2 standard. The device heats up quickly and allows for detailed logging. The log can be easily downloaded, and the device features a fingerprint reader and a touchscreen.
PreLock 95 is a wireless breathalyzer consisting of a handheld unit and a central unit (vehicle unit).
The driver provides a breath sample into the handheld device. The handheld device communicates via radio with the central unit in the vehicle. The vehicle will not start if the driver’s breath alcohol concentration (BrAC) exceeds the permissible blood alcohol concentration. The breath sample data is stored with a date and time stamp.
The alcohol ignition interlock is user-friendly and can be easily installed and removed as needed, such as when switching vehicles.

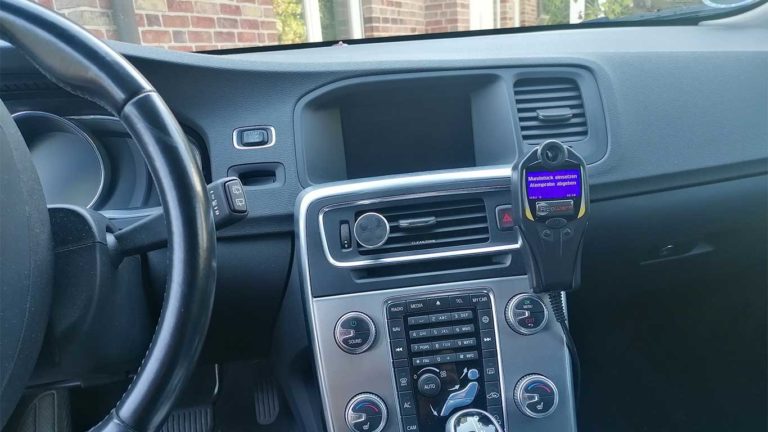

The device consists of a handheld unit and a sensor that is installed in the vehicle. Before starting the vehicle, the driver must blow into the handheld unit to measure their blood alcohol content. If the measured value exceeds the specified limit, the vehicle is locked and cannot be started.
The PreLock 95 is a wireless device that is easy to use. The measured alcohol content is displayed on the LCD screen.
The AlcoWarn – TruckWarn alcohol ignition interlock reliably and accurately measures blood alcohol content. It helps prevent accidents caused by drunk driving and is an effective solution for businesses or individuals who want to ensure that their vehicles are operated only by sober drivers.
Benefits of the PreLock 95 Alcohol Ignition Interlock
- Wireless and portable battery-powered device
- Advanced fuel cell sensor technology
- 2.8-inch TFT color display with a rugged interface
- Easy-to-use graphical user interface with buzzer prompts
- and instructions
- Offers various language options
- Electronic countermeasures (ECCM) for distinguishing between
- mechanically simulated and human breath samples
- Secure wireless data communication at 868 MHz or 915 MHz with 128-bit AES encryption
- Wireless database download from the in-vehicle device
- Connection capability for 16 vehicle immobilizers
- Integrated biometric fingerprint identification for up to 16 users
- User PIN identification
- Fully configurable using configuration software
- PIN-protected menus
- USB-compatible charging of the breathalyzer
- Rechargeable lithium-ion battery
- Single on/off button with status LED
- Easy emergency start with a reset pin
- Hygienically packaged disposable mouthpieces
- Ergonomic design
Technical Specifications – PreLock 95 Alcohol Ignition Interlock
| Operating temperature | -5°C – +65°C |
| Power supply | Lithium-ion battery |
| Warm-up phase | 90s bei -5°C |
| 10 seconds at > 25°C | |
| Measurement range | 0.02 mg/L to 2.00 mg/L |
| Screen | 320 x 240 TFT |
| Recovery time | 60 seconds when the sample is < 35 mg/L |
| Analysis time | ±30 seconds, but 3 seconds when alcohol level is 0 |
| Calibration | Recommendation: every 6 months |
Fire Department
Traction Engine
Sprinter
Truck
Bus
Voltage Rating
Product Name – PreLock 95 Alcohol Ignition Interlock
| Product Name | Alkohol-Wegfahrsperre Kabellos PreLock 95 – AlcoWarn Alkohol-Interlock |
| Item number | 720000016 |
| HAN | PRE95-Box1 |
| EAN | 4055168122411 |
