PreLock-90 Alcohol Ignition Interlock
Our PreLock 90 alcohol ignition interlock is a device that checks the driver’s blood alcohol content before they start the vehicle.
The PreLock 90 alcohol ignition interlock checks the driver’s breath alcohol level before every trip and allows the engine to start only if the test result is negative.
This is a state-of-the-art alcohol interlock. It already complies with the latest EU directives as well as strict requirements for government approvals, such as CENELEC EN 50436-1 and EN 50436-2.
This speaks to the use of proven system components, reliable breath alcohol analysis, and system security.
Benefits of the PreLock 90 Alcohol Ignition Interlock
- Advanced and reliable fuel cell sensor technology.
- One-handed operation: simple and user-friendly menu navigation.
- Status LED: Indicates that the device is ready for operation.
- Can be used even in extreme temperatures, from -40°C to +85°C.
- The PreLock display shows task progress graphically, making it very easy to understand.
- Display: Clear graphical indication of task progress: “Locked” / “Breath sample required” / “Unlocked” / “Retake breath sample”.
- Several language packs are available and can be expanded.
- CAN-bus compatible: Drastically reduces installation time and offers advanced features.
- Upgradable: programmable to meet specific customer requirements and adapt to new legal frameworks.
- Tamper-proof: The system detects both mechanically simulated and human breath samples.
- Separate driver-switch button with status LED.
- Adjustable test intervals: Every time the engine starts / Once a day / Random checks.
- Two bridging functions for optimal mobility:
– In emergency situations, a one-time temporary solution can be used.

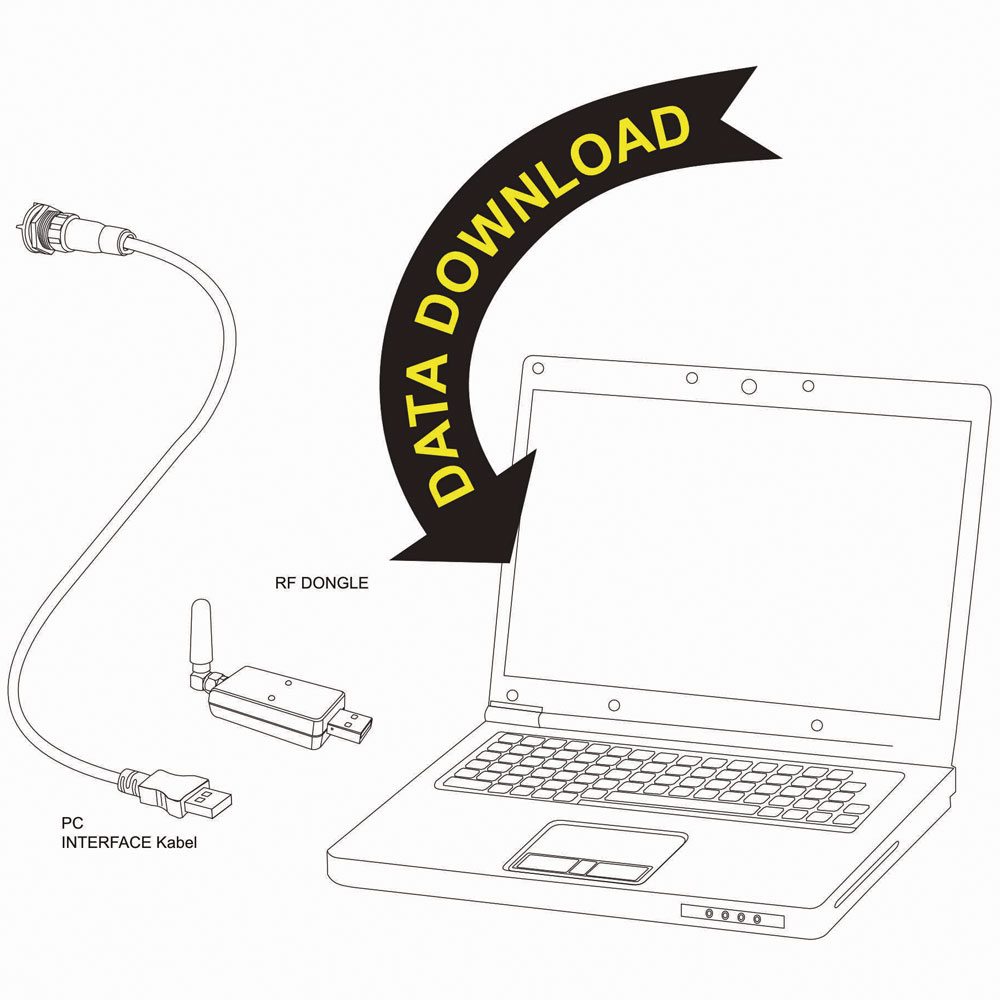

– In the unlikely event of a technical malfunction, the control center can issue an emergency PIN to serve as a temporary workaround. - Wi-Fi data retrieval: Wireless, encrypted data transfer from the vehicle to the PC.
- Easy analysis of system data for each driver.
- 12-volt and 24-volt connection options.
- Mouthpieces: Hygienic, individually packaged mouthpieces for each rider.
Technical Specifications – PreLock 90 Alcohol Ignition Interlock
| Measurement methods | using an electrochemical sensor |
| Scope of work | from -40° C to +85° C at 600 > 1100 hPa |
| Units of measurement BAC | mg/100 mL, g/100 mL, mg/mL, % |
| Measurement range | 0.0 > 2.5 mg/L |
| Calibration | 12 months |
| Storage | over 100,000 records |
| Weight of the handheld device | 280 g |
| Protection | Protection Against Sabotage and Fraud |
| Adjustable test intervals | Before each engine start (default) / Once a day / Occasional spot checks |
Rapid deployment
Ready to take the first measurement in no time. The warm-up phase begins as soon as the car door is opened.
- +85 degrees Celsius < 10 seconds
- +20 degrees Celsius < 5 seconds
- ±0 degrees Celsius < 20 seconds
- -10 degrees Celsius < 60 seconds
- -25 degrees Celsius < 120 seconds
- -40 degrees Celsius < 120 seconds
Hygienic mouthpieces
A separate, hygienic mouthpiece for each rider.
Replacement mouthpieces are available for purchase in sets of 25 per package, each individually wrapped for hygiene.
Product Name
| Product Name | Alkohol-Wegfahrsperre PreLock 90 – AlcoWarn Alkohol-Interlock |
| Item number | 720000001 |
| Part number | PRE90-Box1 |
| EAN | 4055168122770 |
What’s Included

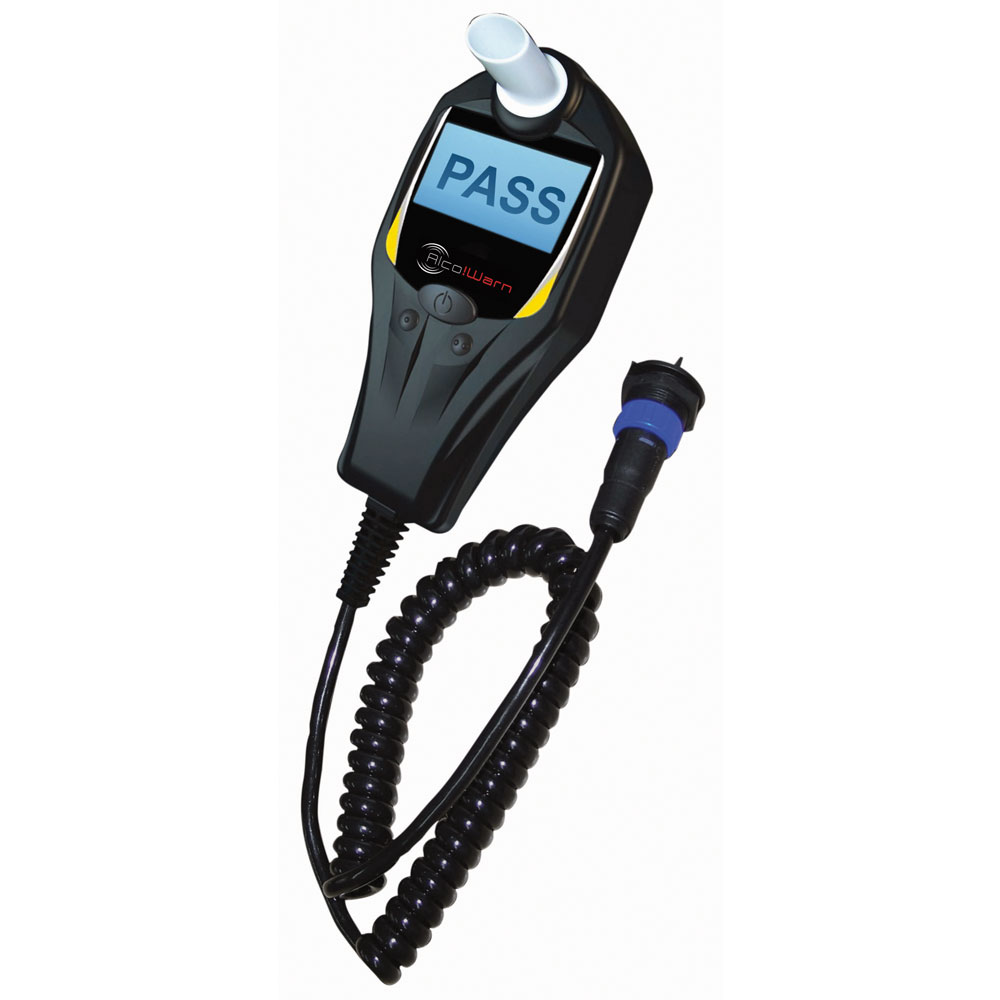

- PreLock 90 Handheld Device

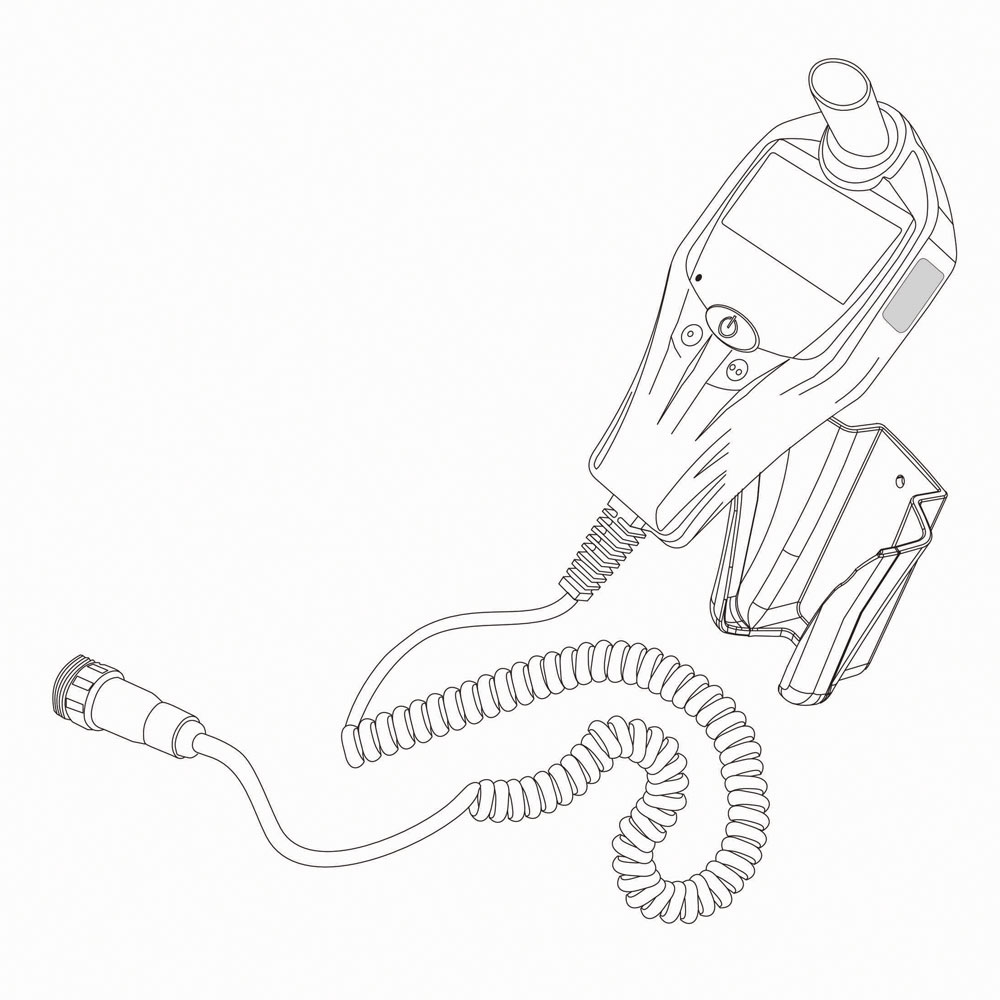

- Handheld device holder
- Main unit with Wi-Fi antenna
- Main wiring harness
- Reset Button with Status LED
